The instruction screenshoot is created on F7S platform. But path and method still applied to models: F3,F3G, F3D, F3S,F3SN, F3SG, F5D, F5G, F7SN,F7SG

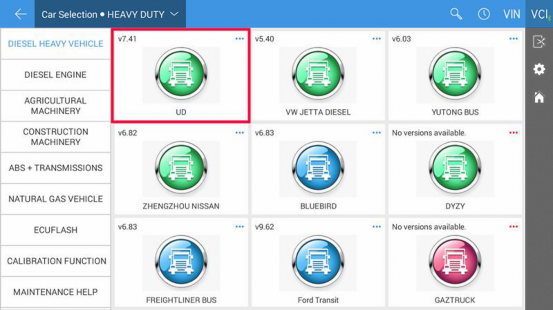

Path: Diesel Heavy Vehicle→UD (V7.41)→Hino Engine→Enter the System→Special Function→Check Functions→DPF Check→DPR Forced Regeneration.

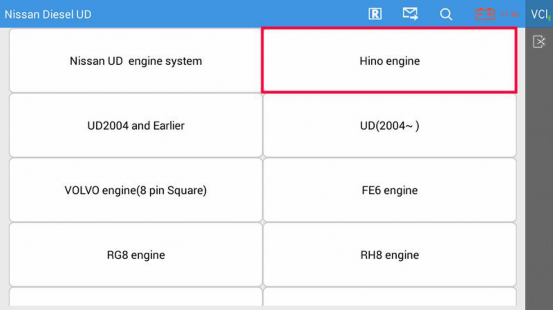

Select “Hino Engine”;

Click “Enter the System”;

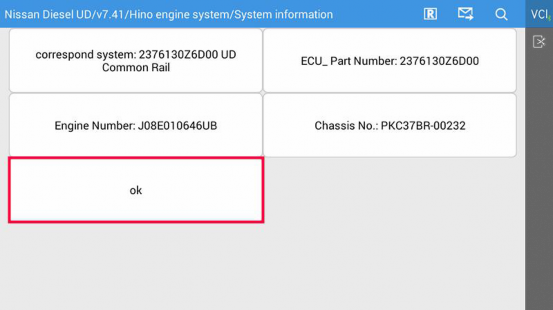

Read the information carefully before clicking “ok”;

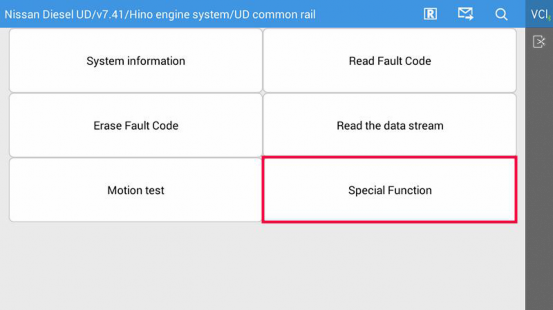

Select “Special Function”；

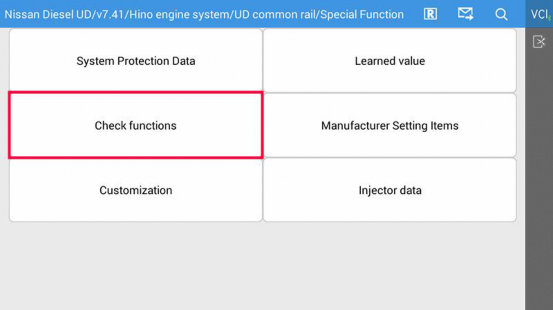

Select “Check Functions”;

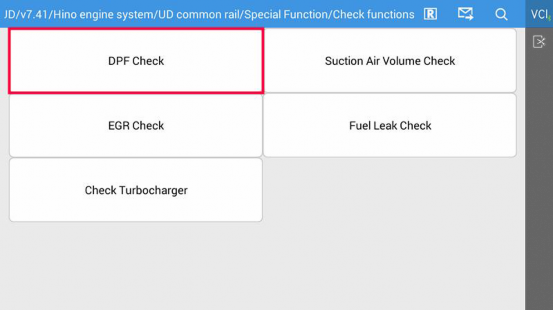

Select “DPF Check”;

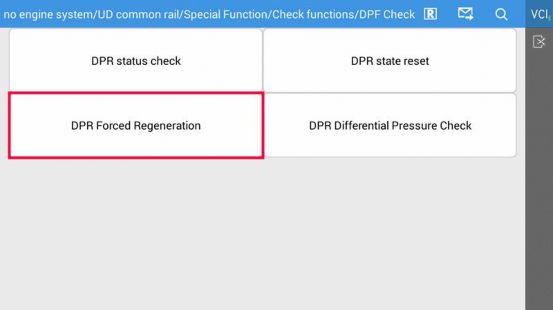

Select “DPR Forced Regeneration”;

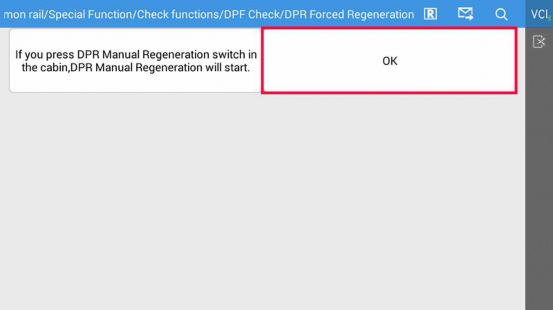

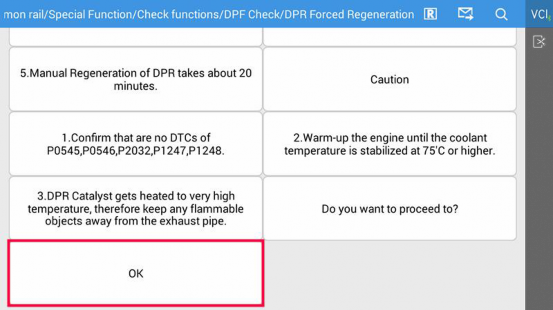

Read the instructions carefully before clicking “OK”;

Read the information carefully before clicking “OK”;

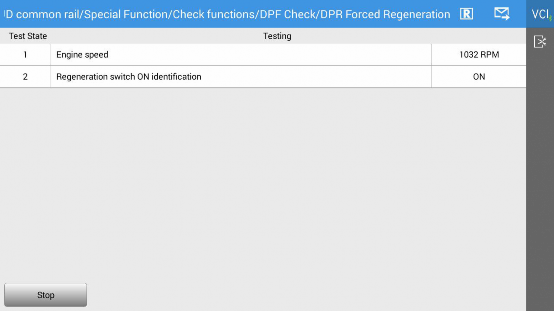

The test will stop and idle speed will return to normal when the particulate filter is sufficiently cleaned of soot. Press "stop" to exit the process early if need be.
